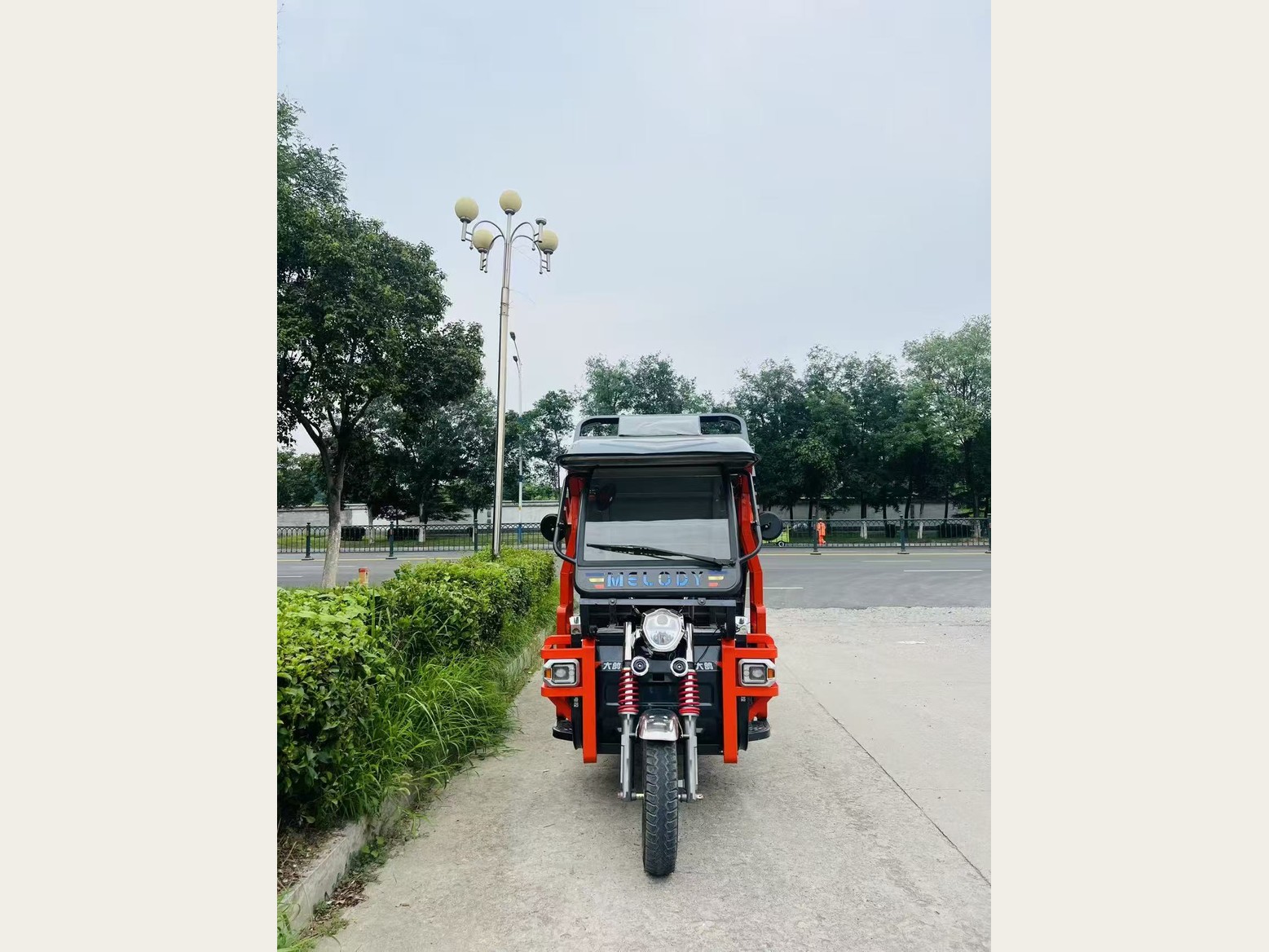

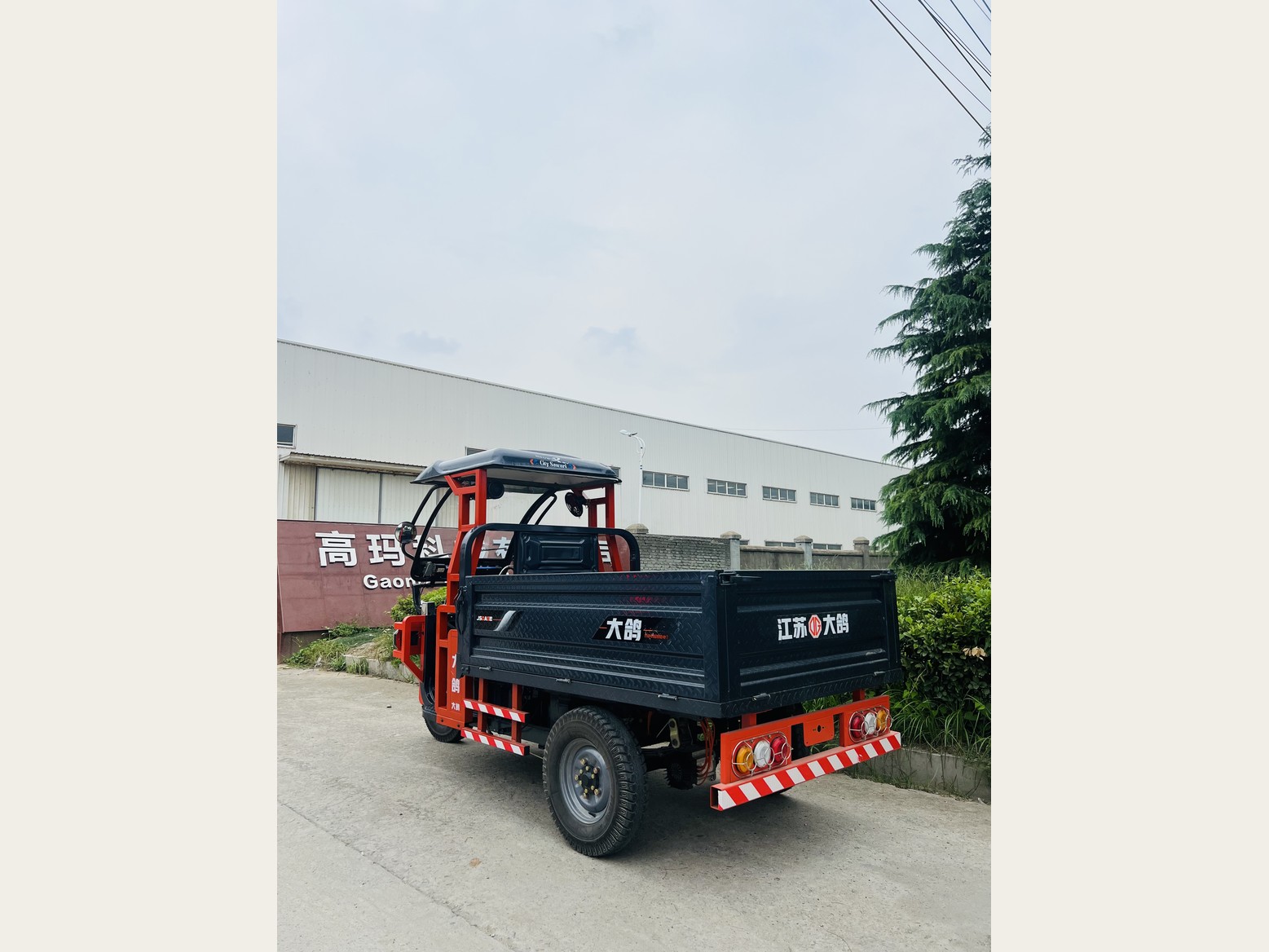

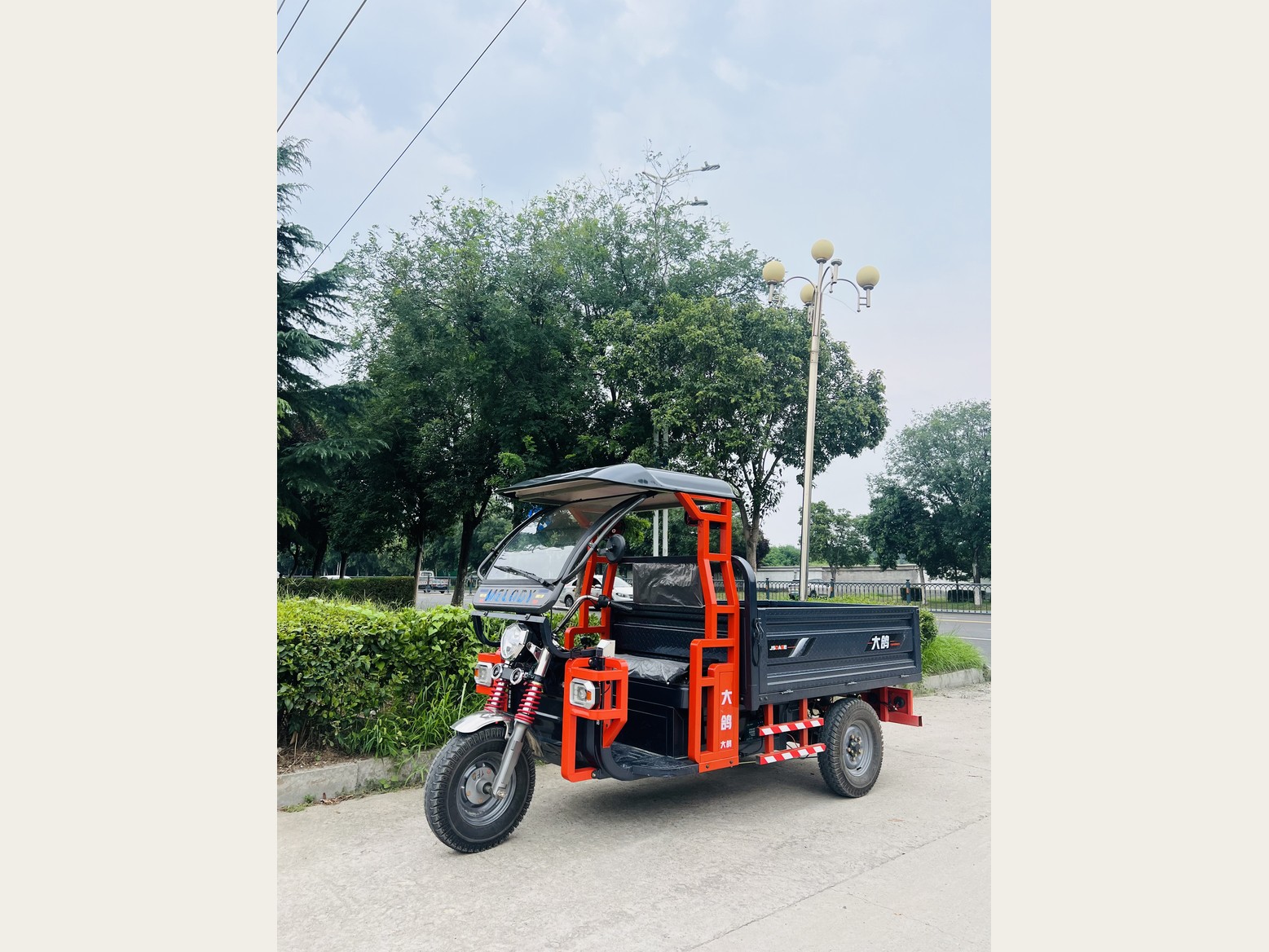

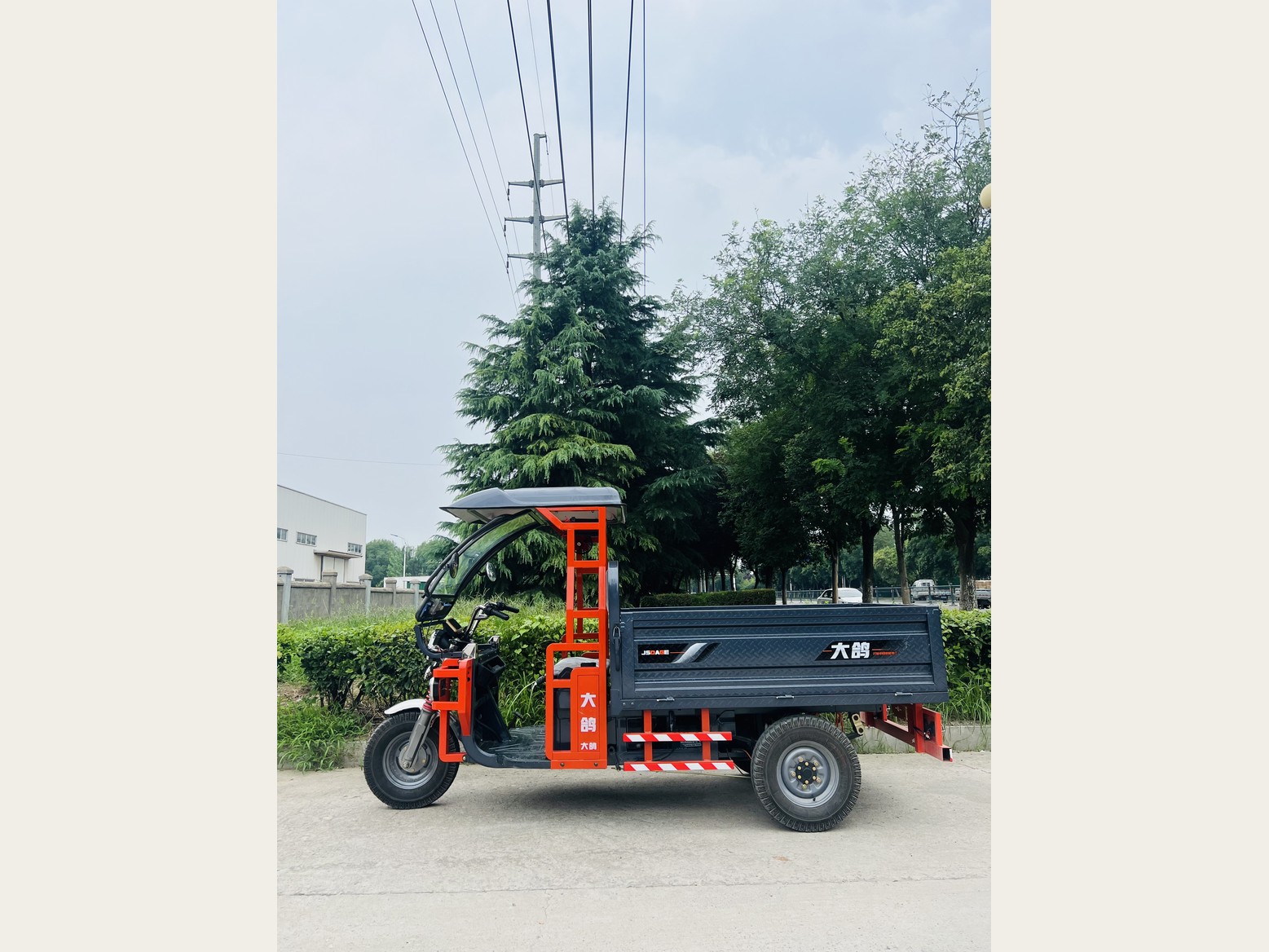

LIBA Heavy-Duty Cargo Tricycle | 力霸重载货运三轮车
商用重载 · 超强承载 · 多地形适应 / Commercial hauling · Extreme payload · All-terrain ready
Key Specs | 核心参数
1500–2000kg最大载重
Max Payload
Max Payload
60–100km续航里程
Range per Charge
Range per Charge
2600W电机功率
Motor Power
Motor Power
1–2座乘员人数
Seats
Seats
视电池与载重而定 · Depends on battery & payload
Technical Specifications | 技术参数
01 基础尺寸与载荷 · General & Dimensions
| 车型名称Vehicle Model | 力霸 Heavy-Duty TricycleLIBA Heavy-Duty Tricycle重载货运款 · Cargo Model |
|---|---|
| 整车尺寸（长×宽×高）Overall Dimensions (L×W×H) | 3420 × 1370 × 2000 mm标准出口尺寸 · Standard export dims |
| 货箱尺寸（长×宽×高）Cargo Box (L×W×H) | 2000 × 1370 × 450 mm / 1800 × 1300 × 450 mm两种规格可选 · 工程加重货箱 · Two box sizes available · Reinforced cargo box |
| 额定载重量Max Payload Capacity | 1500 – 2000 kg超强承载 · Heavy-duty load capacity |
| 整车重量Curb Weight | 350 – 380 kg不含电池 · Without battery |
| 乘员人数Seating Capacity | 1–2 人（司机 + 乘客）1–2 Persons (Driver + Passenger)舒适驾驶座 · Ergonomic bench seat |
02 动力与电池系统 · Powertrain & Battery System
| 电机规格Motor Type & Power | 2600W 扁线无刷电机（70 磁钢）2600W Flat-Wire BLDC Motor (70mm Magnet Steel)高扭矩 · 高效率 |
|---|---|
| 控制器Controller | 36 管压铸铝壳智能矢量控制器（130A）36-Tube Die-Cast Aluminum Controller (130A/DCP)60V / 72V 通用 · Universal |
| 系统电压System Voltage | 60V / 72V |
| 电池规格Battery Configuration | 60V/72V 45Ah – 100Ah 铅酸 / 锂电45–100Ah Lead-Acid or Lithium-Ion按需配置 · Customizable |
| 充电器规格Charger Input | AC 110V – 240V（50/60Hz）智能充电器Smart Charger过充保护 · 适用各国插头 |
| 充电时间Charging Time | 6 – 9 小时6 – 9 Hours自动关断保护 · Auto-shutoff protection |
| 最高时速Max Speed | 40 – 50 km/h高低速变档 · Dual-speed gear shift |
| 续航里程Range per Charge | 60 – 100 km视电池与载重 · Depends on battery & payload |
| 最大爬坡能力Max Gradeability | 20° – 25° |
03 底盘、后桥与制动 · Chassis, Axle & Braking
| 前减震Front Suspension | 43mm 外簧减震（可选 50mm 加粗液压减震）43mm Spring, Optional 50mm Heavy-Duty Hydraulic强力避震 · Strong shock absorption |
|---|---|
| 后桥与制动Rear Axle & Brake | 全悬浮 220mm 鼓刹变档后桥Full-Floating 220mm Drum Brake Gear-Shift Axle变档加重 · 油压制动 · Hydraulic braking |
| 轮胎规格Tire Specification | 前/后 4.50-12（可选 5.00-12 平顶钢丝胎）Front & Rear 4.50-12, Optional 5.00-12耐磨防爆加厚 · Wear-resistant |
| 后悬挂Rear Suspension | 汽车级加厚板簧 + 液压双减震Heavy-Duty Leaf Springs + Hydraulic Dampers高载荷承载 · High load carrying |
04 车架、车身与配置 · Frame, Body & Equipment
| 车架结构Frame Material | 高强度冷轧结构钢High-Strength Cold-Rolled Structural Steel电泳烤漆防锈 · Anti-rust coating |
|---|---|
| 保险杠Bumper | 加重型防撞前保险杠Heavy-Duty Reinforced Front Bumper防撞加固 · Impact protection |
| 仪表盘Dashboard | 高清数显液晶仪表High-Definition Digital LCD Instrument电压 / 速度 / 电量显示 |
| 灯光系统Lighting System | 高亮 LED 大灯、转向灯及刹车灯High-Power LED Headlights & Signal Lights夜间行车更安全 · Safer night driving |
ORDERING INFORMATION
- MOQ: 40HQ full container
- BULK: 2+ 40HQ containers tiered discount
- SHIPPING: SKD / CKD available
- TERMS: FOB / CIF
- CUSTOM: OEM / ODM supported
- PAYMENT: T/T / L/C / Deposit
Standard Features | 标准配置
液压前减震Hydraulic Front Suspension
全悬浮后桥Full-Floating Rear Axle
高低速变档Dual-Speed Gear Shift
LED 灯光系统LED Lighting System
加重保险杠Reinforced Bumper
