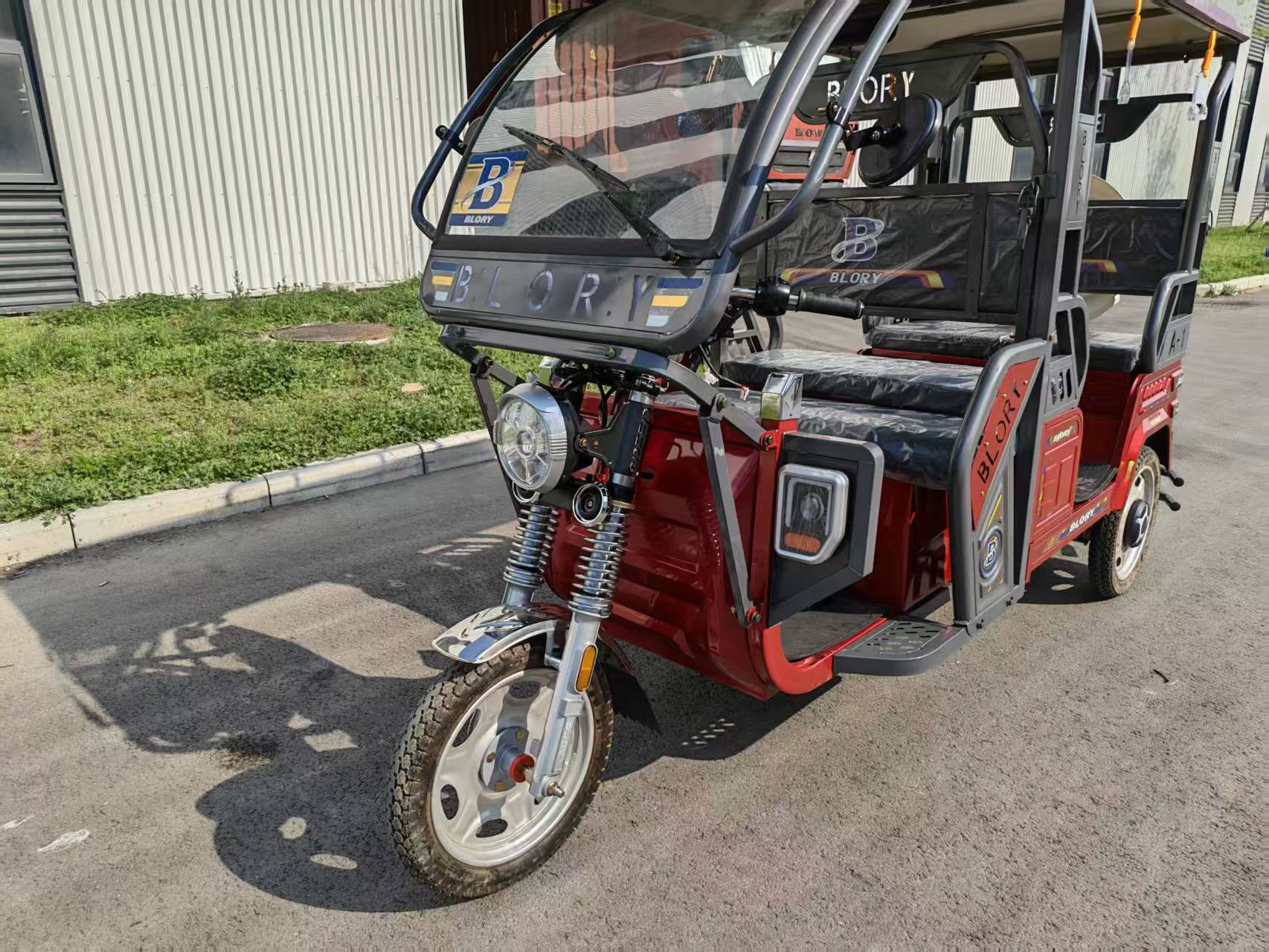

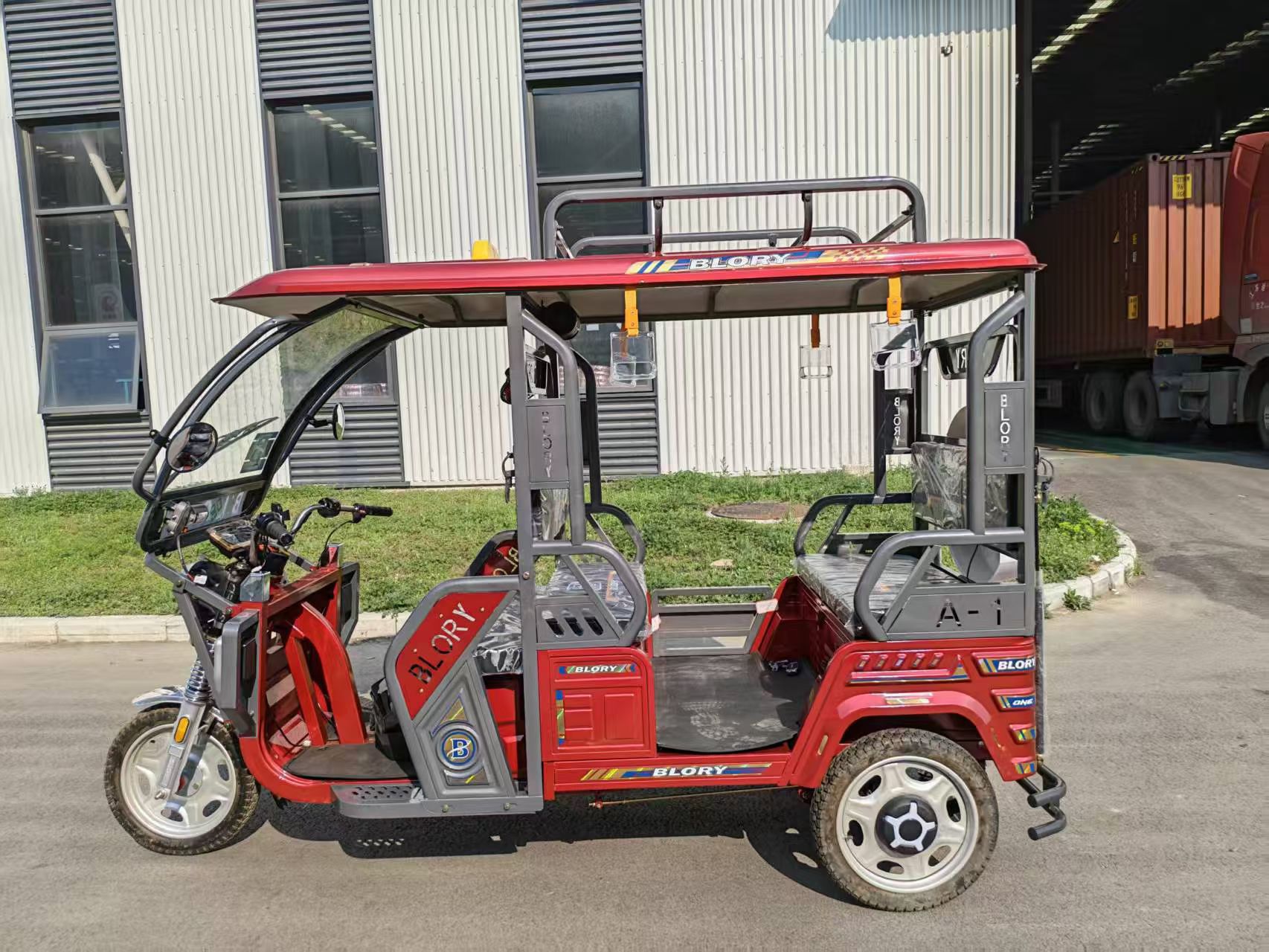

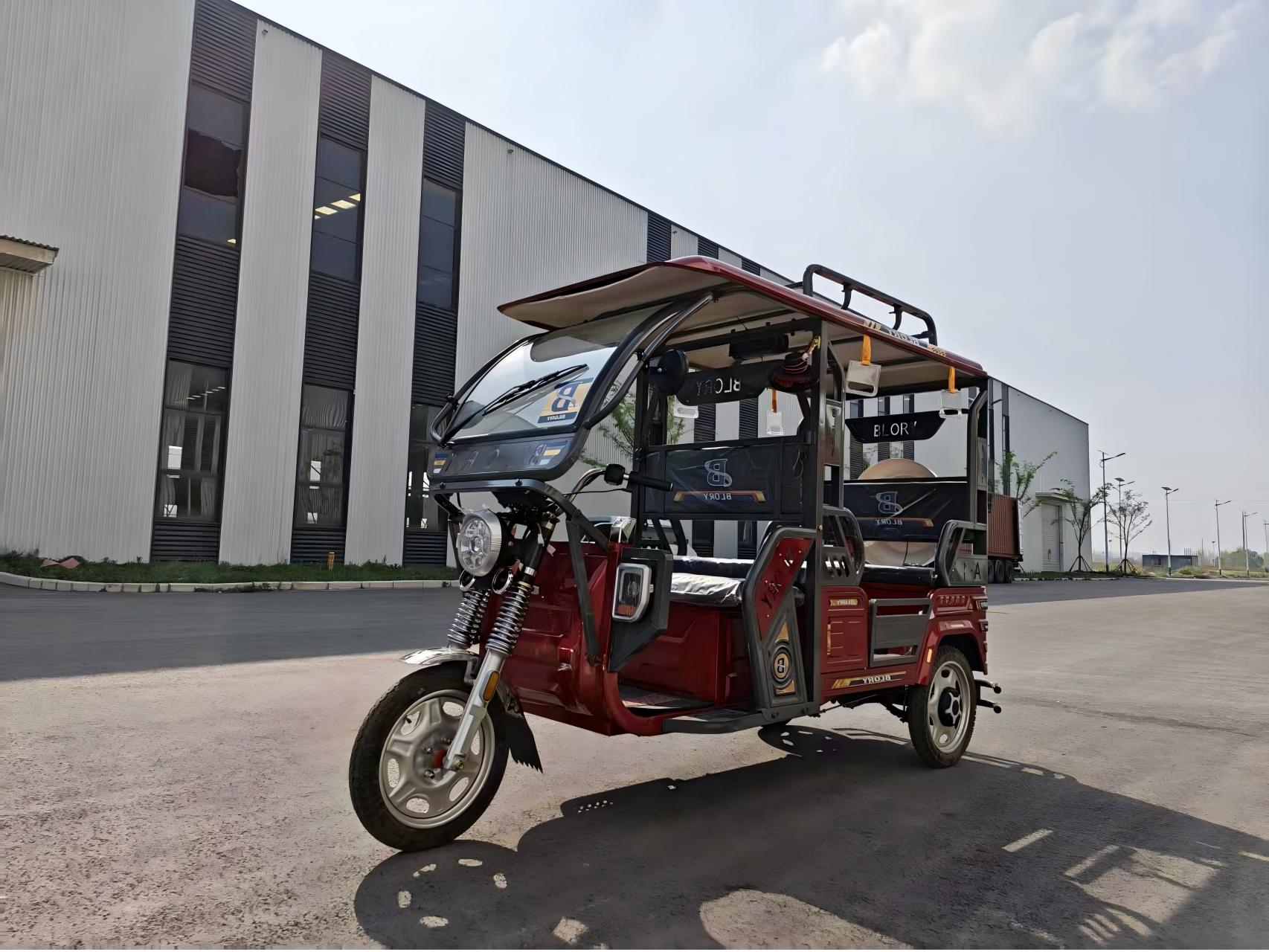

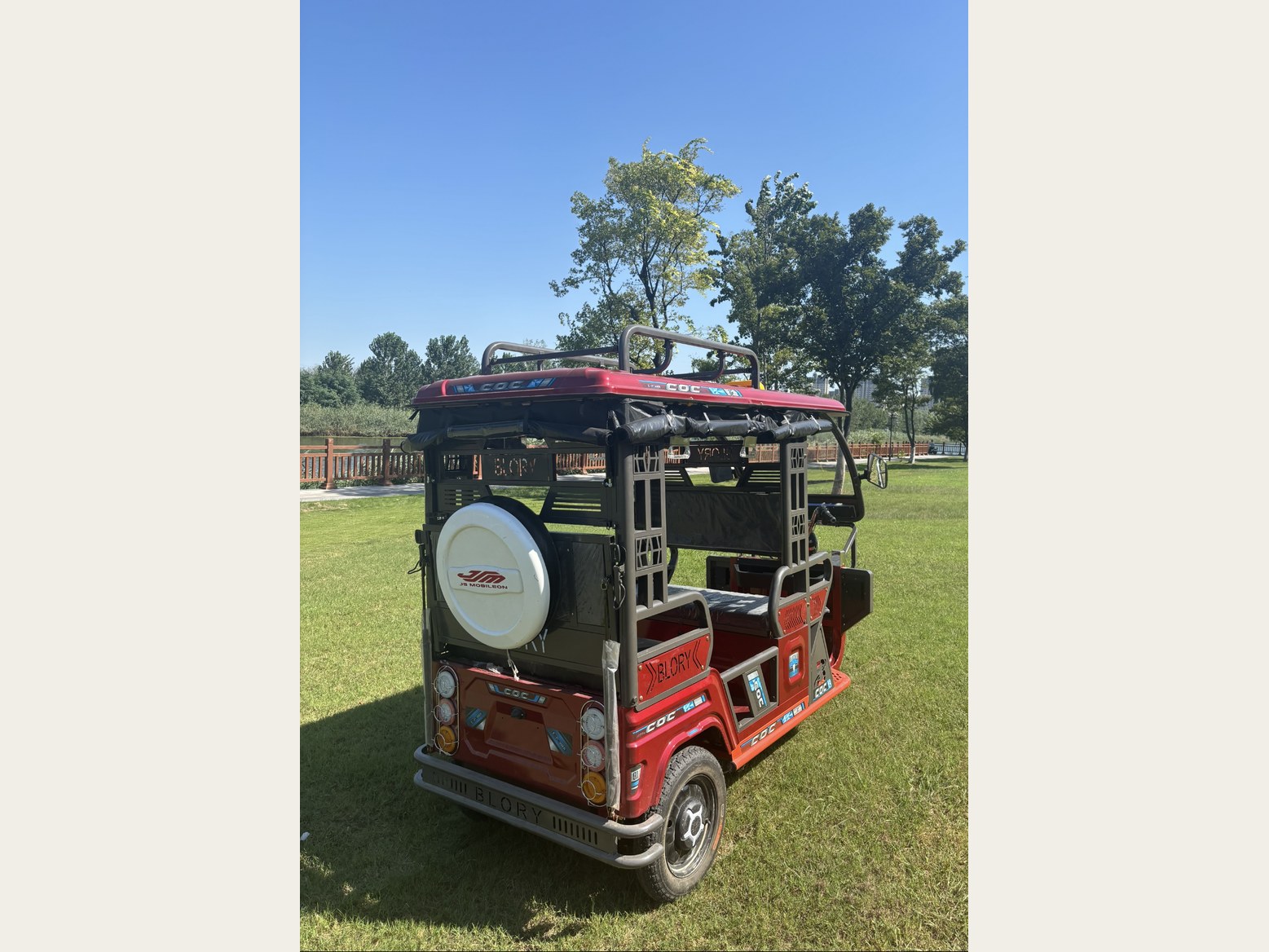

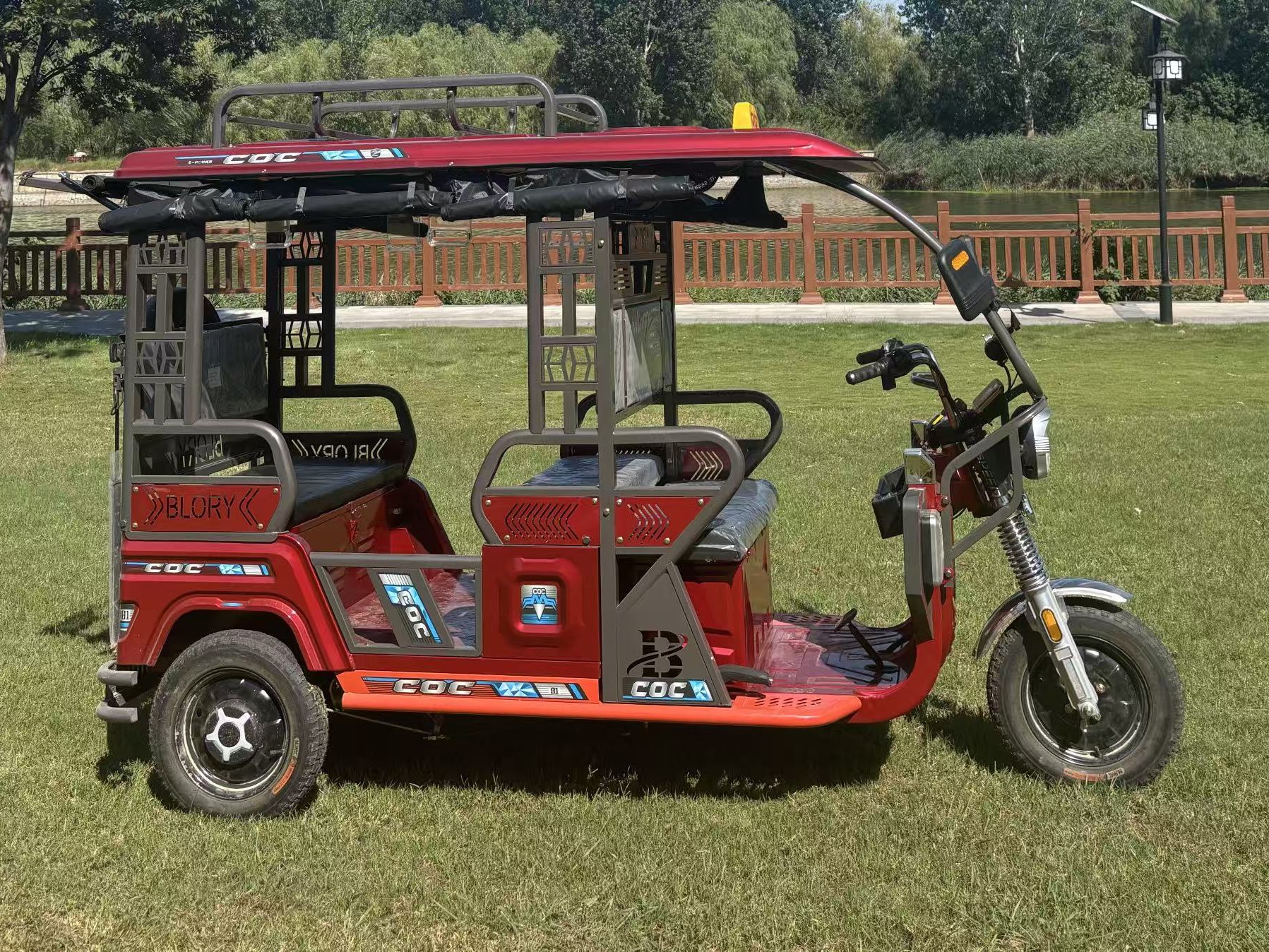

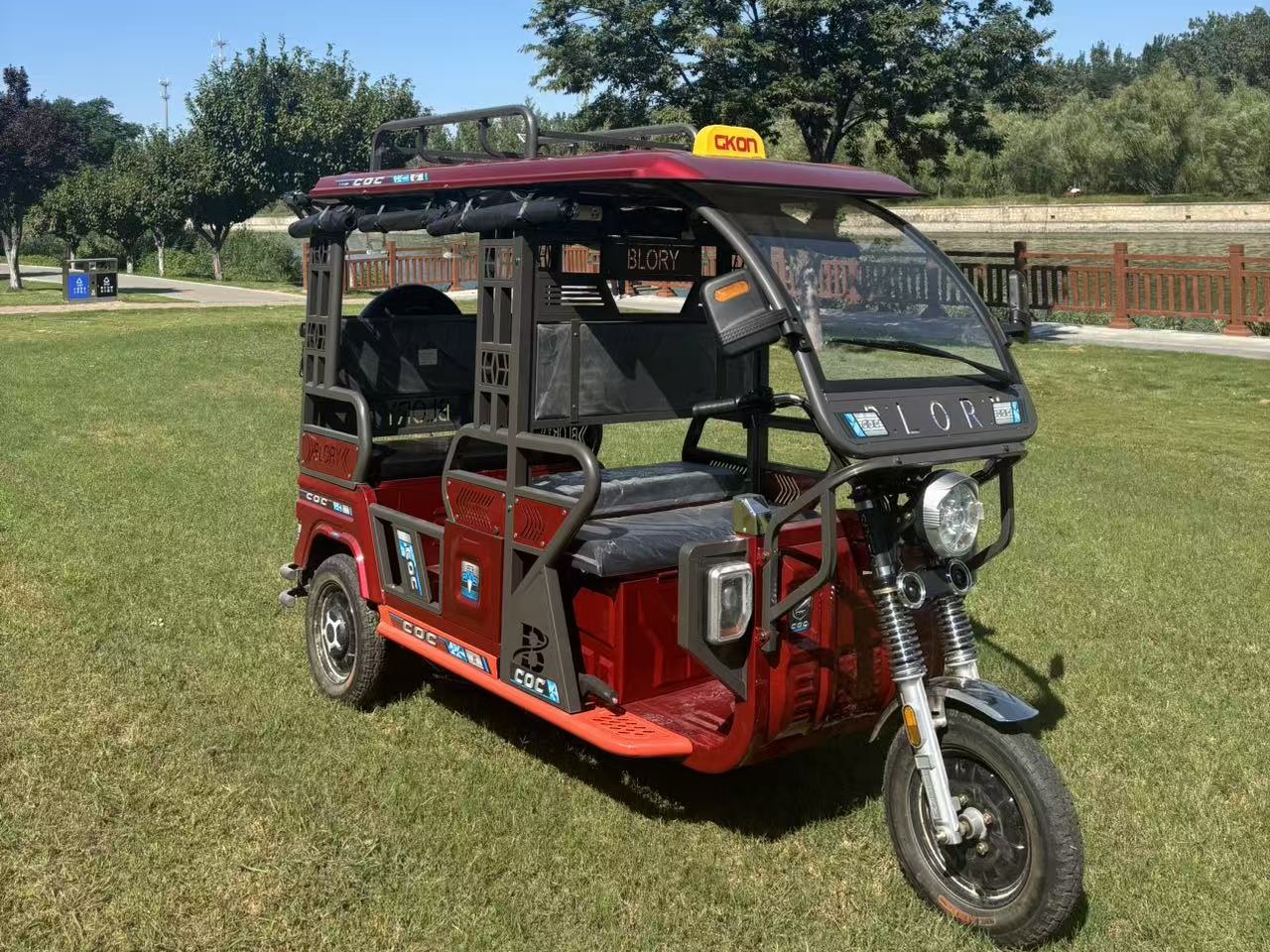

MOMO Electric Passenger Tricycle | MOMO 电动载客三轮车
商用载客 · 重载续航 · 全地形适应 / Commercial passenger transport · Heavy-duty range · All-terrain ready
Key Specs | 核心参数
800kg最大载重
Max Payload
Max Payload
80–200km续航里程
Range per Charge
Range per Charge
1200W电机功率
Motor Power
Motor Power
4–5座乘员人数
Seats
Seats
视载重与路况而定 · Depends on load & road conditions

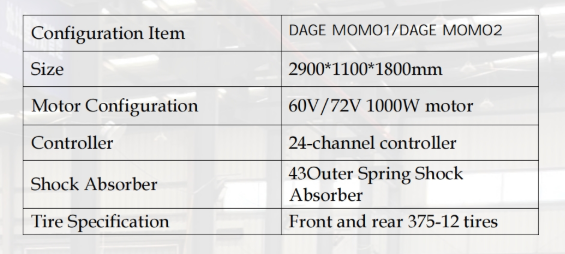

Technical Specifications | 技术参数
01 基础尺寸与载荷 · General & Dimensions
| 车型名称Vehicle Model | MOMO 电动三轮车MOMO Electric Tricycle载客款 · Passenger |
|---|---|
| 整车尺寸（长×宽×高）Overall Dimensions (L×W×H) | 2910 × 1000 × 1700 mm可按需微调 · Customizable |
| 轴距Wheelbase | 2030 mm稳定底盘 · Stable center of gravity |
| 离地间隙Ground Clearance | 200 mm适应多种路况 · All-terrain adapted |
| 整车重量Curb Weight | 300 kg不含电池 · Without battery |
| 最大载重量Max Payload Capacity | 800 kg加强型承载 · Heavy-duty design |

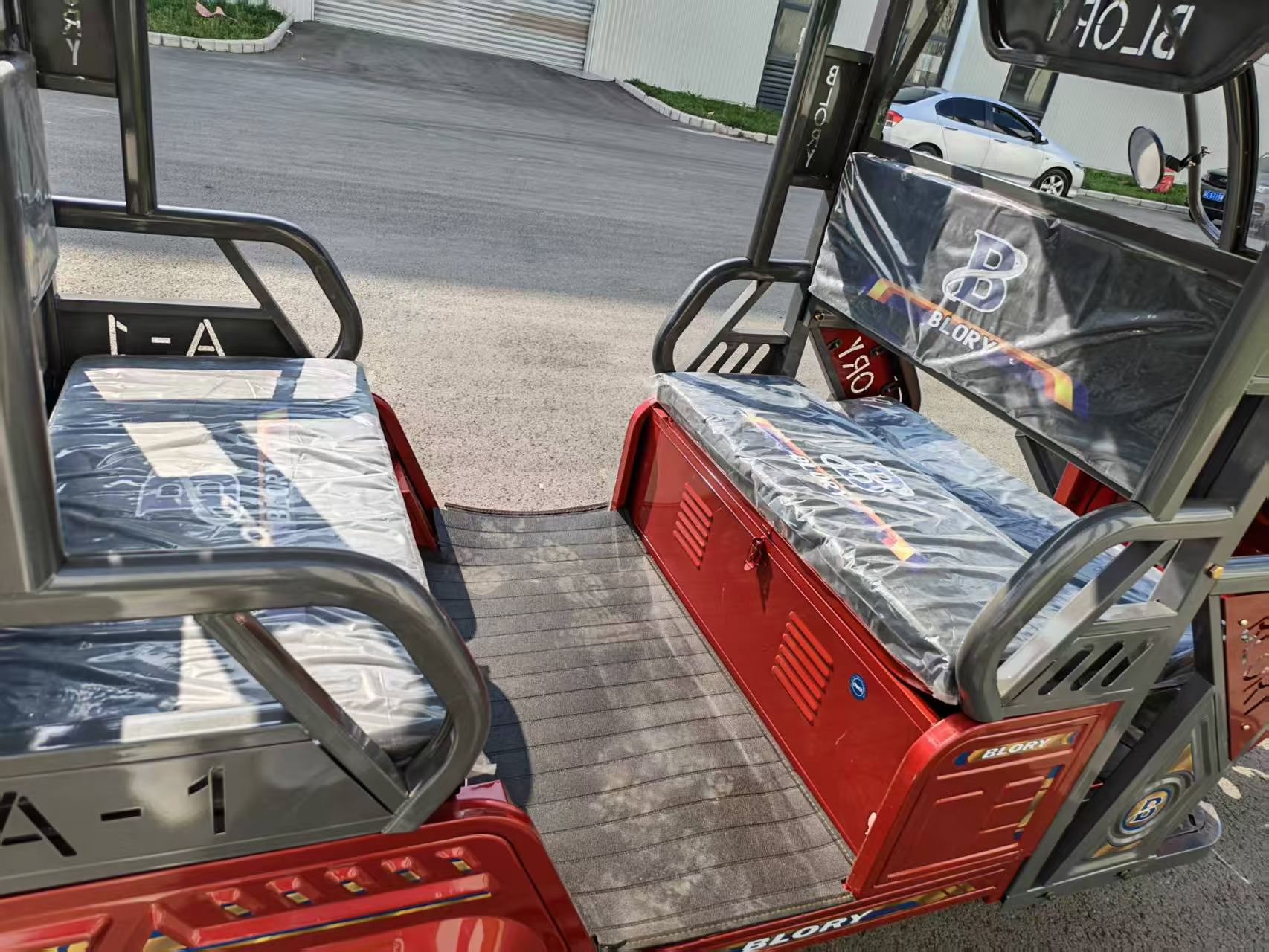

| 乘员人数Seating Capacity | 4–5 人（1 司机 + 4 乘客）4–5 Persons (1 Driver + 4 Passengers)驾驶员座椅 + 后排乘客座椅 |
02 动力与电池系统 · Powertrain & Battery System
| 电机类型Motor Type | 正弦波无刷电机Sine Wave BLDC Motor低噪音、高扭矩、高效率 |
|---|---|
| 额定功率Rated Power | 1200W差速电机 · Differential motor |
| 控制器Controller | 正弦波智能控制器（24 管）Sine Wave Smart Controller, 24-Tubes加速平顺 · Smooth acceleration |
| 电池类型Battery Type | 铅酸 / 锂电Lead-Acid / Lithium-Ion根据客户选择 · Customer preference |
| 系统电压System Voltage | 48V / 60V |
| 电池容量Battery Capacity | 60V 100Ah / 120Ah / 150Ah |
| 充电器输入Charger Input | AC 110V – 240V（50/60Hz）适用各国家插头 · Universal plug |
| 充电时间Charging Time | 6 – 8 小时6 – 8 Hours自动断电安全保护 · Auto-shutoff safety |
| 最高时速Max Speed | 35 – 45 km/h可限速开关 · Speed limiter available |
| 续航里程Range per Charge | 80 – 200 km视载重与路况而定 · Depends on load & road |
| 最大爬坡能力Max Gradeability | 15° – 25° |
03 底盘、制动与悬挂 · Chassis, Brake & Suspension
| 驱动方式Drive Type | 后轴后驱Rear Axle Rear Drive重型差速齿轮 · Heavy-duty differential gear |
|---|---|
| 前悬挂Front Suspension | 液压减震（Φ43mm）Hydraulic Fork (Φ43mm)重型减震 · Heavy-duty shock absorption |
| 后悬挂Rear Suspension | 板簧 + 液压双减震Leaf Springs + Spring Dampers高载荷承载 · High load carrying |
| 制动系统Braking System | 前碟刹 / 后鼓刹Front Disc, Rear Drum脚刹 + 手刹 · Hand & Foot Brakes |
| 轮胎规格Tire Size | 前 3.75-12 / 后 3.75-12Front 3.75-12, Rear 3.75-12可选 4.00-12 · Optional 4.00-12 |
| 轮毂材质Wheel Material | 铝合金轮毂 / 高碳钢轮辋Aluminum Alloy / High-carbon Steel Rims |
04 车身外饰与舒适配置 · Body & Equipment
| 车架材质Frame Material | 高强度结构钢High-Strength Structural Steel防腐电泳漆 · Anti-rust coating |
|---|---|
| 车身形式Cabin Type | 半封闭式Semi-Closed可选防水雨帘 · Optional rain curtains |

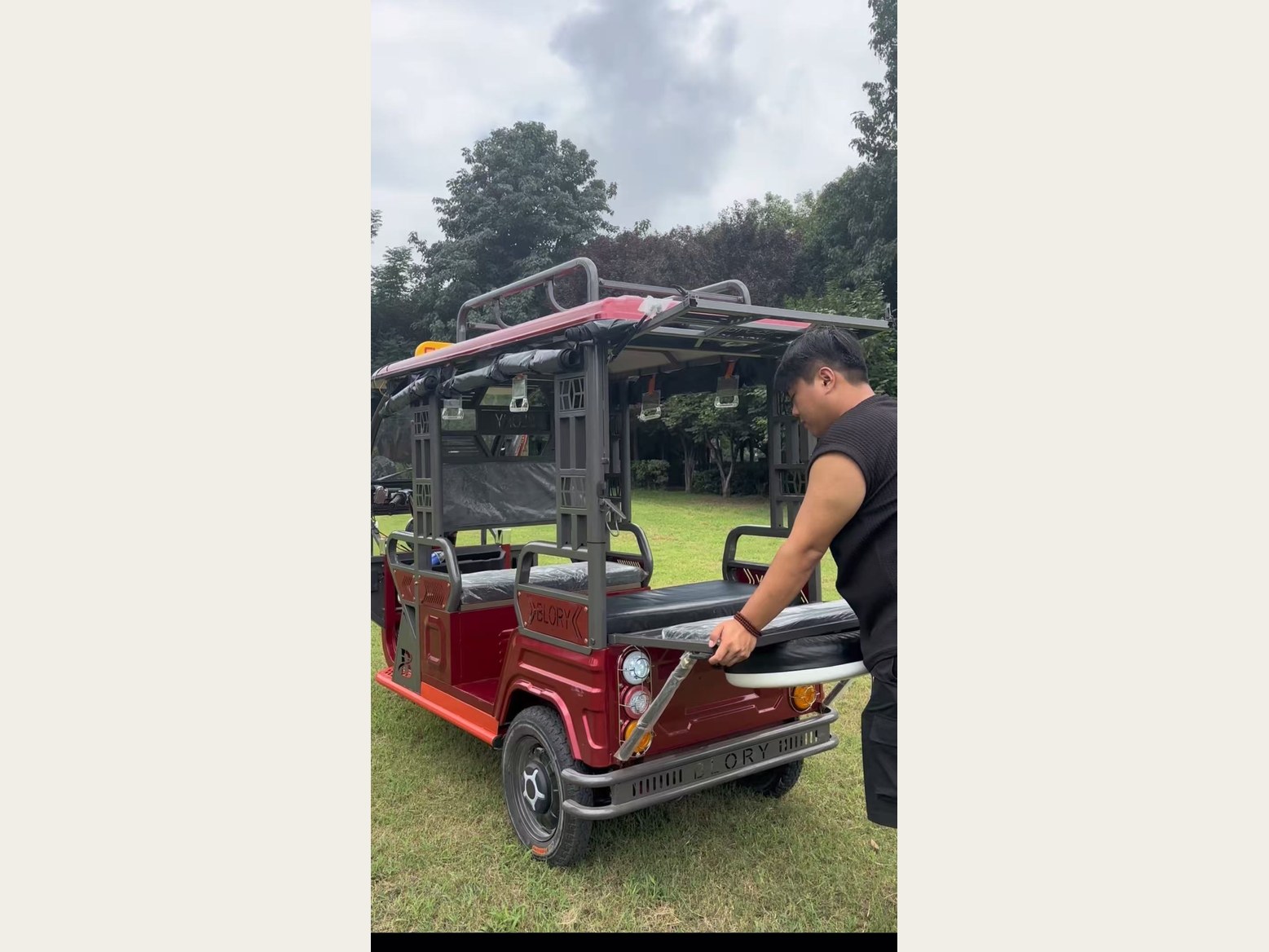

| 尾门设计Rear Gate | 后尾可打开 · 液压杆开合Hydraulic-assisted Rear Opening客货两用 · Dual passenger & cargo use |
| 仪表盘Dashboard | 数显液晶仪表Digital LCD Display速度 / 电量 / 里程 / 信号 |
| 灯光系统Lighting System | 全 LED 前大灯、尾灯及转向灯Full LED Headlights, Tail Lights & Turn Signals |
| 座椅配置Seats | 高回弹皮革座椅Ergonomic Cushion Seats |
| 标准配置Standard Features | 后视镜、蓝牙音箱、USB 充电器、车顶行李架Rearview Mirrors, BT Speaker, USB Charger, Roof Rack |
ORDERING INFORMATION
- MOQ: 40HQ full container
- BULK: 2+ 40HQ containers tiered discount
- SHIPPING: SKD / CKD available
- TERMS: FOB / CIF
- CUSTOM: OEM / ODM supported
- PAYMENT: T/T / L/C / Deposit
Standard Features | 标准配置
后视镜Rearview Mirrors
蓝牙音箱Bluetooth Speaker
USB 充电器USB Charger
车顶行李架Roof Rack
液压后尾门Hydraulic Rear Gate
